| Line 5: | Line 5: | ||

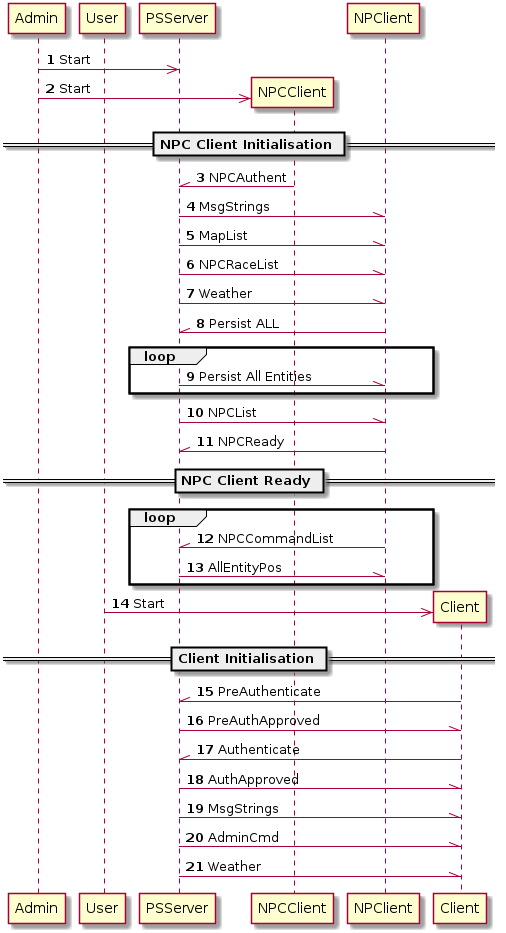

==== Start up NPCClient ==== | ==== Start up NPCClient ==== | ||
<uml> | <uml> | ||
PSServer | autonumber | ||
participant Admin | |||
participant User | |||
Admin ->> PSServer : Start | |||
create NPCClient | |||
Admin ->> NPCClient : Start | |||
== NPC Client Initialisation == | |||
PSServer //- NPCClient : NPCAuthent | |||
PSServer -\\ NPClient : MsgStrings | |||
PSServer -\\ NPClient : MapList | |||
PSServer -\\ NPClient : NPCRaceList | |||
PSServer -\\ NPClient : Weather | |||
PSServer //- NPClient : Persist ALL | |||
loop | |||
PSServer -\\ NPClient : Persist All Entities | |||
end | |||
PSServer -\\ NPClient : NPCList | |||
PSServer //- NPClient : NPCReady | |||
== NPC Client Ready == | |||
loop | |||
PSServer //- NPClient : NPCCommandList | |||
PSServer -\\ NPClient : AllEntityPos | |||
end | |||
create Client | |||
User ->> Client : Start | |||
== Client Initialisation == | |||
PSServer //- Client : PreAuthenticate | |||
PSServer -\\ Client : PreAuthApproved | |||
PSServer //- Client : Authenticate | |||
PSServer -\\ Client : AuthApproved | |||
PSServer -\\ Client : MsgStrings | |||
PSServer -\\ Client : AdminCmd | |||
PSServer -\\ Client : Weather | |||
</uml> | </uml> | ||
[[Category:Engine documents]] | [[Category:Engine documents]] | ||
Revision as of 22:29, 29 April 2011
Design
Sequences
Start up NPCClient
